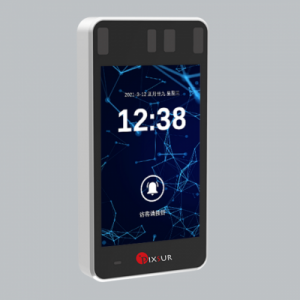

Auto tilt lris & Face Recognition Access Control & Time Attendance Terminal
G-M50
|
The G-M50 is an iris recognition access control andtime attendance device with an 8″ touch screen. Itsupports multiple verification methods including irisrecognition, facial recognition and card swipe. It hasauto-tilt function, covering a height range of 1.45 to1.85m. |
Features:
.

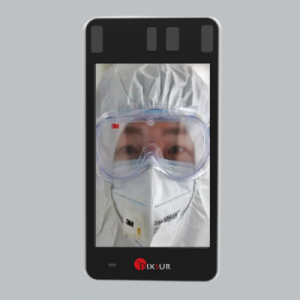

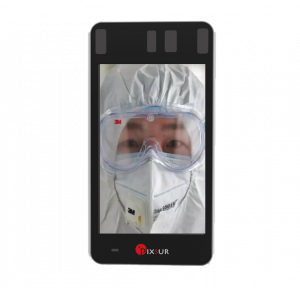

| Iris Recognition+Facial Recognition |
Users can select iris recognition, facial recognition, card, or their combinations. Different verification methods can be applied on different groups, or work shifts.
.
| Quick and Accurate |
| High speed recognition and Superior accuracy on Pixsur’s newest hardware platform and improved algorithm. No more worries about the biometric spoofing attemps. |
.

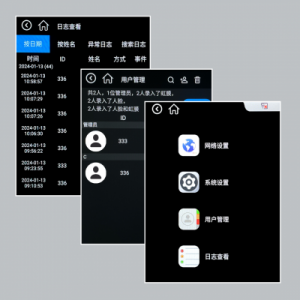

8′ LCD Touch Panel & Intuitive UI
Enrollment, information checking, parameter settings, etc, can be easily managed on the screen.
.
Speedy Temperature Detecton Mode
Optional thermometer is available. The terminal supports 2 working modes. Identification+Temperature detection mode, and the speedy temperature detection mode. (This mode is for the applications in which identification is not required. The users temperature and snapshot will be recorded.）
Specification
| Work Mode | Standalone/Network | Size | 253x130x35mm |
| Verification Mode | Iris Recogntion,Facial recognition, IC Card | Iris Image | conform to ISO/IEC19794-6:2005 |
| Iris/Face Capture Method | Auto | Lighting Method | Conform to IEC/EN 62471 |
| Total User Capacity | 50,000 | Facial User Capacity | 10,000 |
| Iris User Capacity | 50,000 | Log Capacity | 50,000 (Expandable per customer request) |
| Enrollment Speed | <1s | Card | IC Card |
| Recognition Speed | <0.5s | Interface | RJ45, RS485, Wiegand 26/34 output,1 Relay output, Wifi, Bluetooth, 4G |
| Accuracy | FAR=1/2×10-7, FRR＜1% | Case Material | ABS |
| Working Distance | 30-100cm | Weight | 500g |
| Working Temp. | -20℃-60℃ | Power Consumption | ＜12w |
| Ambient Brightness | 0-10000lux | Power | DC12V |
| Distance Notice | Screen Display | Others | Wallmount back plate, desktop/turnstile holder |
